Mechanical wafer pick edge grip with spatula (WHS-G2) 50-76 mm

Product description

Applications:

  • Specialty wafer handling - General edge only handling of bonded, double topography, Taiko, optical, TSV, MEMS and other wafers that cannot be handled by a backside contact handling methods.

  • Standard handling - Manually transferring, sorting, and loading wafers in a wafer fab. Works for both silicon and compound wafers.

  • Inspection - Sample inspecting wafers for macro defects, particles, and scratches, which typically requires operators to inspect under specialized lighting.

  • Flat surface interface - Using the knife edge version to load and unload wafers from hotplates, platens, or vacuum chucks.
  • Economical handling tool - Used as cost-effective and portable alternative to a vacuum wands for general wafer handling applications; and as a replacement for tweezers which leave scratches behind.

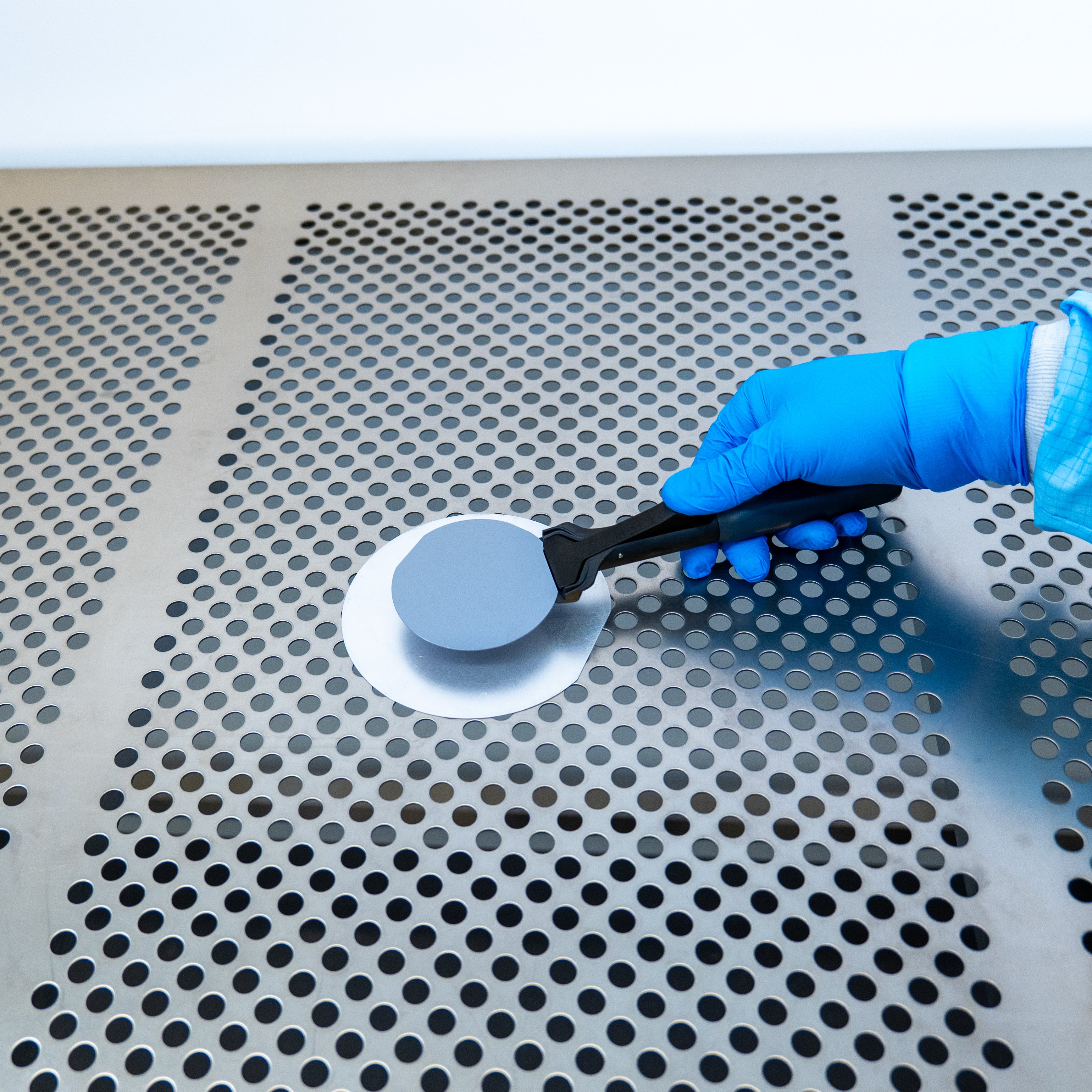

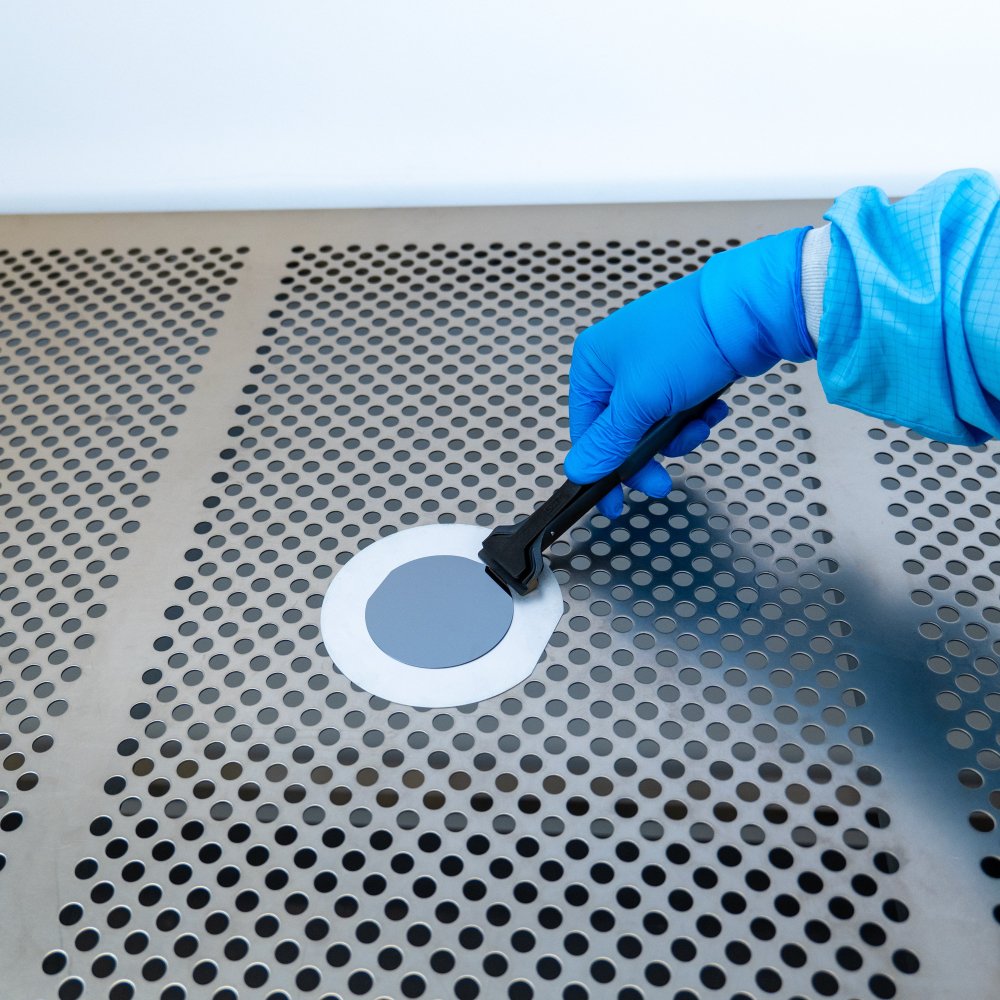

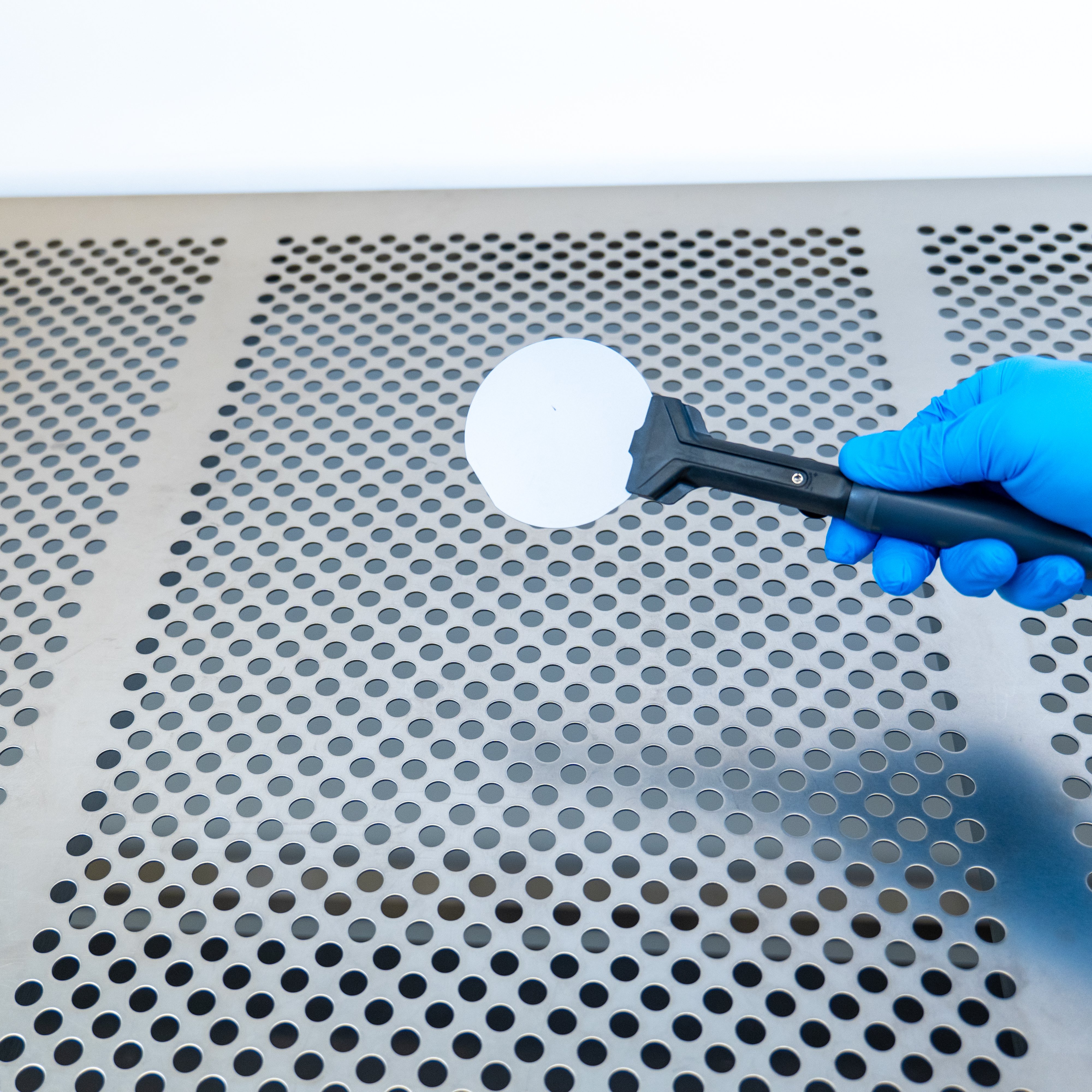

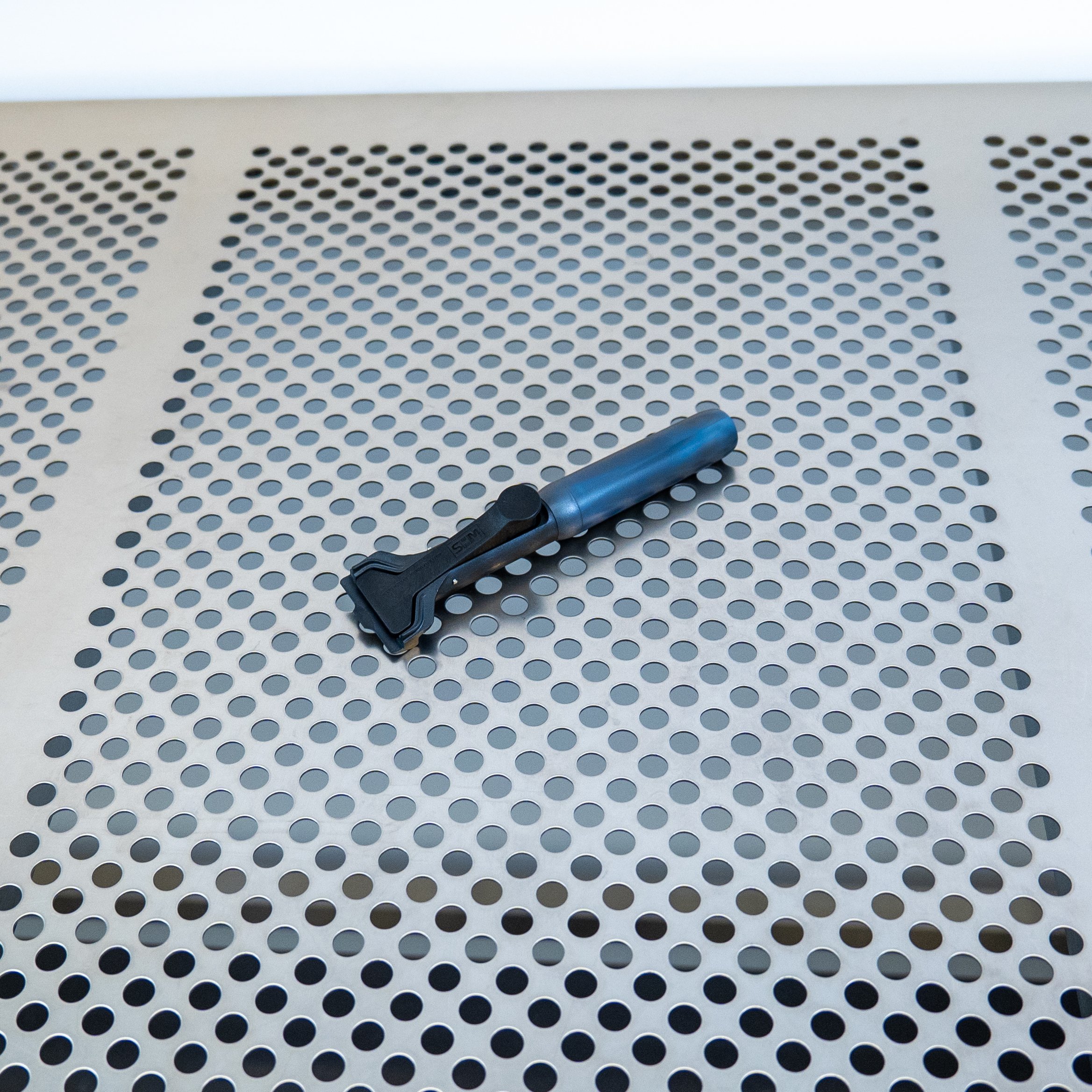

The WHS-G2 series is an advanced manual 50-76 mm wafer handling tool, designed specifically for applications requiring precise wafer manipulation on flat surfaces. A sister product to the WHS-G1, the WHS-G2 features a knife-edge spatula, ideal for lifting wafers from hotplates, platens, or vacuum chucks. This normally-closed, edge-only mechanical gripper accommodates wafers with thicknesses ranging from 120 μm to 1000 μm, ensuring secure handling in a variety of semiconductor processes.

The knife-edge spatula is compatible with surfaces up to 160°C, making the WHS-G2 an ideal solution for high-temperature wafer handling. The bottom gripper is constructed from ESD-safe PEEK for durability, antistatic protection, and chemical resistance. The top gripper side of the tool features a 3 mm perfluorocarbon elastomer touchpad, which provides gentle, secure contact without risking scratches or contamination.

The ergonomic handle and easy-to-use trigger design enhance operator control and reduce fatigue, enabling safe handling of SEMI Standard round substrates, both silicon and compound wafers. In addition to standard wafer handling tasks such as manual transferring and sorting, the WHS-G2 is suited for specialty handling applications, including bonded and Taiko wafers, optical components, and MEMS devices.

Offering a cost-effective alternative to vacuum wands and tweezers, the WHS-G2 ensures precise handling without scratching or leaving debris. Manufactured in an ISO9001certified facility and with CE certification, the WHS-G2 meets international standards for performance and safety, making it an indispensable tool in cleanroom environments.

WHS

Mechanical wafer pick edge grip with spatula (WHS-G2) 50-76 mm

Choose your size:
Knife-edge spatula for precise wafer lifting from hot surfaces
Handles wafers on hotplates and platens up to 160°C
ESD-safe PEEK construction for antistatic protection
3 mm perfluorocarbon touchpad for scratch-free contact
Ergonomic design

Specifications

Brand
WHS
Product Number
WHS-G2-23
Material
Backside/gripper: Antistatic PEEK
Wafer size
50-76 mm
Grip hold
Normally closed
Front size
3 mm front side touchpad
Front material
Perfluorocarbon elastomer
Cleanroom designation
ISO 4 (Class 10 FS209E)
Status
Request information
