Mechanical wafer pick edge grip (WHS-G1) 100-125 mm

Product description

Applications

  • Specialty wafer handling - General edge only handling of bonded, double topography, Taiko, optical, TSV, MEMS and other wafers that cannot be handled by a backside contact handling methods.

  • Rescue - Rescuing wafers that are stuck inside a process tool or automation.

  • Standard handling - Manually transferring, sorting, and loading wafers in a wafer fab. Works for both silicon and compound wafers.

  • Inspection - Sample inspecting wafers for macro defects, particles, and scratches, which typically requires operators to inspect under specialized lighting.
  • Economical handling tool - Used as cost-effective and portable alternative to a vacuum wands for general wafer handling applications; and as a replacement for tweezers which leave scratches behind.

The WHS-G1 series is a precision-engineered manual 50-76 mm wafer edge gripper designed for safe, efficient handling of wafers with thicknesses ranging from 120 μm to 1000 μm.

This antistatic, normally-closed mechanical tool is ideal for applications where traditional backside contact methods are not suitable, such as bonded wafers, double topography, Taiko, TSV, MEMS, and optical wafers. The bottom gripper material is ESD-safe PEEK, offering longevity, antistatic protection, and chemical resistance in demanding cleanroom environments. Featuring a 3 mm perfluorocarbon elastomer front side touch pad, the WHS-G1 ensures secure wafer handling without risking scratches or contamination. Its ergonomic, weighted handle and easy-to-use trigger provide precise control and reduce operator fatigue during long periods of manual wafer handling. The design is optimized for SEMI Standard round substrates, making it versatile for both silicon and compound wafers.

The WHS-G1 is not only suitable for standard wafer handling tasks like manual transferring, sorting, and loading, but also excels in more specialized operations, such as rescuing wafers stuck inside process tools or automation systems. It can also be used for inspecting wafers for macro defects, particles, and scratches, with its edge-only handling method reducing the risk of contamination.

This gripper is a cost-effective alternative to vacuum wands and tweezers, providing superior handling without leaving scratches or debris. Manufactured in an ISO9001 and CE certified facility, the WHS-G1 meets international standards for safety and performance, offering a reliable solution for high-precision wafer handling in cleanroom environments.

WHS

Mechanical wafer pick edge grip (WHS-G1) 100-125 mm

Choose your size:
Normally-closed edge gripper for secure wafer handling
Ergonomic design with easy-to-use trigger for operator comfort
3 mm perfluorocarbon elastomer touchpad for scratch-free wafer contact
ESD-safe construction for durability and chemical resistance

Specifications

Brand
WHS
Product Number
WHS-G1-45
Material
Backside/gripper: Antistatic PEEK
Wafer size
100-125 mm
Grip hold
Normally closed
Front size
3 mm front side touchpad
Front material
Perfluorocarbon elastomer
Cleanroom designation
ISO 4 (Class 10 FS209E)
Status
Request information

Other products of interest

Webshop
WHS-G2-45
Edge wafer picks
WHS
Mechanical wafer pick edge grip with spatula (WHS-G2) 100-125 mm
WHS-G2 Serie MCP2-6-S A normally closed (consistent-Force) edge exclusion mechanical pick For handling 50 mm up to 200 mm round substrates from the wafer edge.
100-125 mm
Normally closed
3 mm front side touchpad
Perfluorocarbon elastomer
ISO 4 (Class 10 FS209E)
Webshop
WHS-G3-401
Chemistry wafer picks
WHS

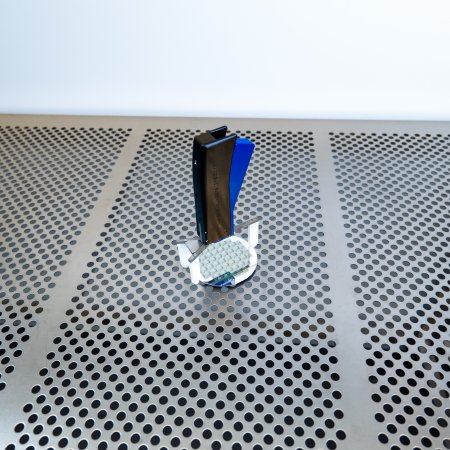

3-point mechanical wafer gripper (WHS-G3) 4" (100 mm) PTFE
